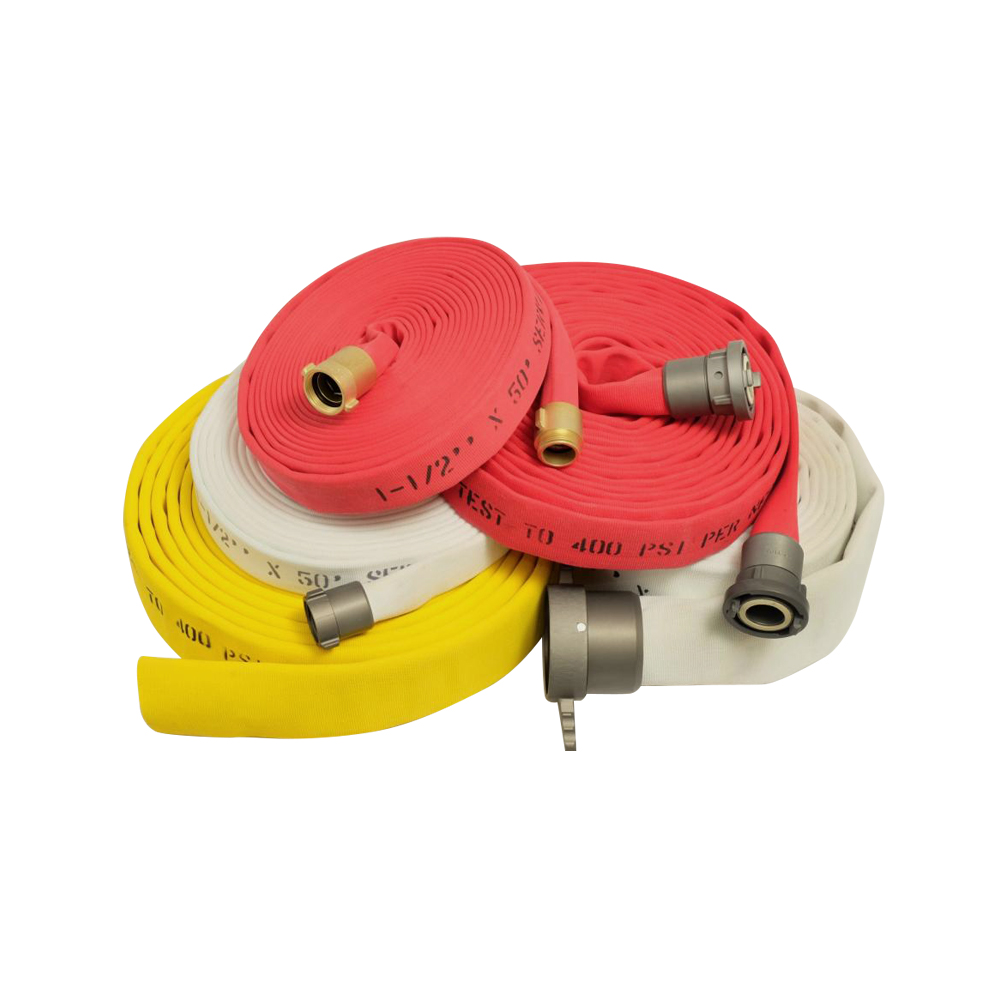

1-1/2″ x 50′ Red Coupled Aluminum IPT/NPSH Double Jacket Fire Hose (800 LB Test)

Description

Double Jacket Red 1-1/2″ X 50′ Coupled Aluminum IPT/NPSH

Description

Double Jacket Fire Hose (800 LB Test)

The double jacket fire hose (800 lb test) is flexible, strong and abrasion resistant. Manufactured to exacting municipal requirements. Designed to be the ultimate in industrial and municipal fire protection.

Attack Hose

A fire hose is a high-pressure hose that carries water or other fire retardant (such as foam) to a fire to extinguish it. Outdoors, it attaches either to a fire engine or a fire hydrant. Indoors, it can permanently attach to a building’s standpipe or plumbing system.

Attack hose is a fabric-covered, flexible hose used to bring water from the fire pumper to the nozzle. This hose ranges in nominal inside diameter from 1.5“ to 3” and is designed to operate at pressures up to about 400 psi. The standard lengths are 50, 75’ and 100’, with custom lengths built to meet specific requirements.

Jacket Construction:

The jackets are woven evenly and free of defects, from spun polyester yarn that offers superior strength

and wear characteristics. The warp yarn is standard 100% polyester. The filler yarns are high strength,

low elongation, filament polyester to reduce weight and increase flexibility. In addition the jacket is

Lining:

The rubber lining is a single ply, extruded, synthetic EPDM tube, compounded to resist ozone. Under

this specification, the construction of this hose is to be manufactured fully backed.

Couplings

Internal expansion ring threaded aluminum coupling IPT/NPSH thread.

available upon request )

Pressure Ratings:

400# Service Test Pressure

800# Proof Test Pressure

1350# Burst Pressure

Temperature Range:

-40 degrees F to 180 degrees F

-40 degrees C to 82 degrees C

Special Characteristics:

Standard color is white. Available in yellow, red, orange, blue, black, tan  and green. Standard lengths

are 50’ and 100’. Custom lengths are available. Hose meets the standards and specifications of

Underwriters Laboratories, Inc. (UL), including UL-19 (tensile strength & elongation) for rubber-lined

hoses.  All hoses are stenciled with 1” characters stating “service test to 400 PSI Per NFPA 1962 “ and

the service date in a contrasting color indelible ink.

Service Life:

Wear and length of service can be extended by maintaining fire hose assemblies. (The Complete Guide for Cleaning Fire Hoses)   This hose has a potential service life of ten (10) years, notwithstanding mistreatment and/or misuse.
